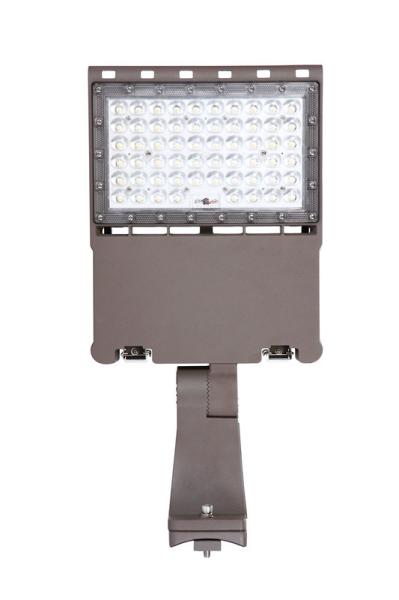

45000LM Outdoor LED Street Lights 300W LED Parking Lot Lights Adjustable Slip Fit Mount

    Buy cheap 45000LM Outdoor LED Street Lights 300W LED Parking Lot Lights Adjustable Slip Fit Mount from wholesalers

    Buy cheap 45000LM Outdoor LED Street Lights 300W LED Parking Lot Lights Adjustable Slip Fit Mount from wholesalers
    • Buy cheap 45000LM Outdoor LED Street Lights 300W LED Parking Lot Lights Adjustable Slip Fit Mount from wholesalers

    45000LM Outdoor LED Street Lights 300W LED Parking Lot Lights Adjustable Slip Fit Mount

    Ask Lasest Price
    Brand Name : ZCH
    Model Number : ZCH-SL
    Certification : CE,Rohs,SAA,C-tick
    Price : As negociated
    Payment Terms : T/T, Western Union
    Supply Ability : 100000PCS per month
    Delivery Time : 2-7 days
    • Product Details
    • Company Profile

    45000LM Outdoor LED Street Lights 300W LED Parking Lot Lights Adjustable Slip Fit Mount

    LED Parking Lot Lights 300W 45000LM LED Shoebox Adjustable Slip Fit Mount Lights Fixture Replacement


    Introduction for 300W shoe box lights:


    ZCH LED area light is a device,this street lights which are consist of aluminum alloy frame, LED light source model and driver.It can be a replacementof HID and other traditional light fixture, provided with higher efficacy, a longer lifetime 50,000H at least or even more up to 100,000H and very lower breakdown opportunity, higher reliability and better cost than any light before. The high-performance,IlP65-rated luminaire delivers a minimum of 150Lm/W, providing significant energy savings whileremaining durable in the field.


    Product Description for 300W shoe box :


    Typical

    Power

    (W)

    Input voltage

    (V)

    Luminous

    (Lumen)

    Efficacy

    (LM/W)

    Typical CCT

    (K)

    RaBeam AngleLED ChipPFIP

    Dimension

    (L*W*H)

    60WAC100-277V AC277-480V90001503000/4000/5000/5700/650070TYPE3/TYPE4/TYPE53030> 0.95IP65

    435*277*75mm

    17.1*10.9*3.0”

    80WAC100-277V AC277-480V120001503000/4000/5000/5700/650070TYPE3/TYPE4/TYPE53030> 0.95IP65
    100WAC100-277V AC277-480V150001503000/4000/5000/5700/650070TYPE3/TYPE4/TYPE53030> 0.95IP65
    120WAC100-277V AC277-480V180001503000/4000/5000/5700/650070TYPE3/TYPE4/TYPE53030> 0.95IP65

    150W

    (Small)

    AC100-277V AC277-480V225001503000/4000/5000/5700/650070TYPE3/TYPE4/TYPE53030> 0.95IP65

    150W

    (Medium)

    AC100-277V AC277-480V225001503000/4000/5000/5700/650070TYPE3/TYPE4/TYPE53030> 0.95IP65

    520*277*75mm

    20.5*10.9*3.0”

    200WAC100-277V AC277-480V300001503000/4000/5000/5700/650070TYPE3/TYPE4/TYPE53030> 0.95IP65
    240WAC100-277V AC277-480V360001503000/4000/5000/5700/650070TYPE3/TYPE4/TYPE53030> 0.95IP65

    600*322*75mm

    23.6*12.7*3.0”

    300WAC100-277V AC277-480V450001503000/4000/5000/5700/650070TYPE3/TYPE4/TYPE53030> 0.95IP65

    Fast Delivery Within 300W shoe box lights:


    Application:

    Area Lights series can be widely used in Parking lot ,Urban roads, Industrial areas, Residential areas,Sidewalks,

    Schools, Gardens and etc.



    SL series Area for light provide 3 basic dimension. The small size for max 150W , the medium size for max 200W , the large size for max 300W .

    There are 5 installation brackets for different application, such as round/square pole, wall mounting, and can adjust the beam angle accordingly.



    Ordering information for 300W shoe box lights:


    Electronic chart.

    Optical chart.

    Instruction chart.

    Smart function

    A

    B

    C

    D

    E

    F

    G

    H

    I

    J

    K

    L

    M

    N

    Rated power

    Input voltage

    Driver brand

    Dimming

    CCT

    CRI

    LED CHIP

    BeamAngle

    Dimension

    Color

    Installation

    Lens

    Surge Protector

    Sensor

    60W

    80W

    100W

    120W

    150W

    200W

    240W

    300W

    L- 100~277V H-277~480V

    1-SOSEN

    2-MEANWELL

    5-FAHOLD

    Blank-No dimmable D-Dimmable

    27K-2700K 30K-3000K 40K-4000K 50K-5000K 57K-5700K 60K-6000K 65K-6500K

    70-Ra70 80-Ra80

    1 Seoul3030

    2 Tongyifang3030

    3 Osram3030

    T1-TYPE 1 T2-TYPE 2 T3-TYPE 3 T4-TYPE 4 T5-TYPE 5

    S3/S4

    M3/M4

    L3/L4

    BK-Black BR-Brown WH-White

    Blank-Non-

    bracket

    A-Bracket A

    C-Bracket C

    D-Bracket D

    E-Bracket E

    F-Bracket F

    Blank-PC G-Glass

    Blank-No surge

    protector

    SP-Surge protector

    Blank-Sensorless

    L-Photocell

    M-Motion sensor

    S-Photocell+motion

    sensor


    FAQ for 300W shoe box lights:

    Q1. Delivery time?

    Delivery time is quick.Can delivery within 24 hours in US.

    Q2. How to proceed an order for led light?

    A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the delivery.3W 6W 9W 12W 18W office ceiling light round ultra silm led panel light price

    Q3: Do you offer guarantee for the products?

    A: Yes, we offer 5 years warranty to our products.
